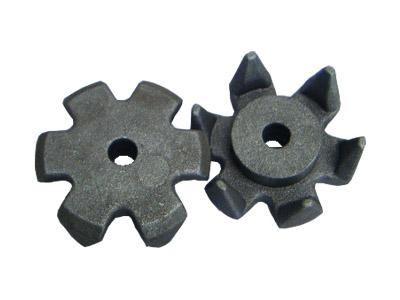

OEM Ductile Iron QT450 Iron Casting Parts For Speed Reduction Motor
Quick Detail:
· Ductile Iron Casting Gear
· Cast iron QT450
· Sand Casting and CNC Machining
· Shot Blasting fininsh for surface treatment
· Speed Reduction Motor
Ductile Iron Material Grade from TwinkleIndustrial
| No. | China/GB 699 | Russia/ROCT | USA/ASTM A536 | England/BS | France/NF | Germany/DIN | Japan/JIS | ISO 683/1 |
| 1 | QT400-18 | BЧ40 | 60-40-18 | 400/17 | FGS370-17 | GGG40 | FCD400 | 400-18 |
| 2 | QT450-10 | BЧ45 | 65-45-12 | 420/12 | FGS400-12 | | FCD450 | 450-10 |
| 3 | QT500-7 | BЧ50 | 70-50-05 | 500/7 | FGS500-7 | GGG50 | FCD500 | 500-7 |
| 4 | QT600-3 | BЧ60 | 80-60-03 | 600/7 | FGS600-2 | GGG60 | FCD600 | 600-3 |
| 5 | QT700-2 | BЧ70 | 100-70-03 | 700/2 | FGS700-2 | GGG70 | FCD700 | 700-2 |
| 6 | QT800-2 | BЧ80 | 120-90-02 | 800/2 | FGS800-2 | GGG80 | FCD800 | 800-2 |
| 7 | QT900-2 | BЧ90 | | 900/22 | | | | 900-2 |
Product Description:
The material of cast iron gear for speed reduction motor is ductile iron, and the common model is QT450-12. Firstly we make a mould and then use mould to make sand core, and then pour the melted iron into sand mould and make into the blank part, and then drilling holes, turning the surface to reach the dimension tolerances and then reach the final usage assemble.
Product Specifications:
| Commodity | Iron Casting & Machining Parts / Gear Cap |
| Standard | ASTM, DIN, JIS, EN, ISO, BS, JCSI, GB |
| Material | Grey iron (HT200,HT250,HT300), Ductile iron (QT400-18,QT400-15,QT450-10,QT500-7) |
| Unit Weight | 0,05 kg ~ 1,000 kg. |
| Tolerance | CT6-CT8 |
| Machining | Turning, Milling, Drilling, Cutting, Reaming, Threading, Welding, Tooling, etc |
| Surface Treatment | Shot blasting, Painting, Powder coating, Electroplating, Chrome plating, etc |
| Package | Standard wooden box package or as your customized package |
| Applications | Agricultural machinery, Petroleum machinery, Mining machines, Construction, Automotive & Truck, Medical, Marine, Railway & Train, Power lines, Furniture, Lighting, Flange, Valve and Pump, Electronic, Pipeline, etc. |
| Brand | Twinkle Industrial |
Product Applications:
Widely used agricultural machinery, petroleum machinery, mining machines, construction, automotive & truck, medical, marine, railway & train, power lines, furniture, lighting, flange, valve and pump, electronic, pipeline, etc.
FAQ
Q1. How can we get a quotation?
A: Please send the parts 2D drawing (in PDF format) and 3D model in IGS or STP format together with material, production technique, purchasing qty, etc, or provide sample to us.
Q2. What about the lead time?
A: 15-20 days for Sample making ,20 working days for mass production.
Q3. Do you have any MOQ limit for casting parts?
A: It depends on different parts. For some parts, 1 pc can be acceptable.
Q4. What is your payment term?
A: Mold: 50% payment in advance, balance after the sample approval.
B: Mass production: 30% payment in advance, 70% balance before shipment.
Q5. What is your quality control process?
A: Each casting parts will be provided with raw material report ( chemical composition and physical property), and dimension measuring report before shipment.
Q6. How about the packaging?
A: Standard wooden box package or as your customized package.
